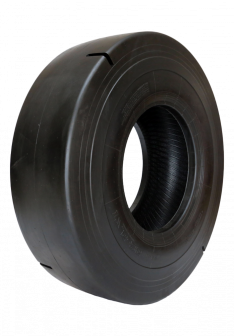

Underground Mining tyre

10.00-20 12.00-20 12.00-24 14.00-24 16.00-25 17.5-25 18.00-25 20.5-25 23.5-25 26.5-25 29.5-25 29.5-29 35/65-33 45/65-45

Features:

Smooth Tread Design
Cut Resistance
Extra Deep Tread
Excellent High Quality

Suitable Conditions:

Suitable to the equipment operating under rocky harsh conditions of pit lane,tunnel,underground mine such as LHD,underground mining loaders ,shuttle car

Tel: +86-532-85616527

E-mail: David@marristyre.com

Description

Suitable to the equipment operating under rocky harsh conditions of pit lane,tunnel,underground mine such as LHD,underground mining loaders ,shuttle car.

Extra deep tread depth provides long tread life in extreme conditions.

Smooth tread design provides the maximum rock type damage resistance.

Features Aralon cut resistance breaker construction,which provides increased strenth and durability.

Data table

Size	Ply-rating	Rim	Tube Type	S.W.(mm)	O.D.(mm)	Max.Load(kg)10km/h	Inflation Pressure(kpa)10km/h
10.00-20	14	8.00	TT	279	1069	4250	650
10.00-20	16	8.00	TT	279	1069	4600	750
12.00-20	16	8.50	TT	315	1145	5450	675
12.00-20	20	8.50	TT	315	1145	6350	875
12.00-24	20	8.50V	TT	315	1245	6900	825
12.00-24	24	8.50V	TT	315	1245	7500	975
14.00-24	20	10.00W	TT/TL	375	1370	8500	700
	24	10.00W	TT/TL	375	1370	9500	850
	28	10.00W	TT/TL	375	1370	10000	925
	32	10.00W	TT/TL	375	1370	10900	1050
	36	10.00W	TT/TL	375	1370	11400	1100
16.00-25	28	11.25/2.0	TL	430	1395	11500	750
	32	11.25/2.0	TL	430	1395	12500	875
	36	11.25/2.0	TL	430	1395	13600	975
	40	11.25/2.0	TL	430	1395	14500	1075
17.5-25	20	14.00/1.5	TT/TL	445	1350	8250	800
17.5-25	24	14.00/1.5	TT/TL	445	1350	8950	850
18.00-25	32	13.00/2.5	TL	523	1666	15000	750
	36	13.00/2.5	TL	523	1666	16000	850
	40	13.00/2.5	TL	523	1666	17000	950
	50	13.00/2.5	TL	523	1666	19500	1200
20.5-25	20	17.00/2.0	TL	520	1490	9500	450
20.5-25	24	17.00/2.0	TL	520	1490	10300	525
23.5-25	20	19.50/2.5	TL	595	1615	10900	375
	24	19.50/2.5	TL	595	1615	12500	475
	28	19.50/2.5	TL	595	1615	13600	550
26.5-25	36	22.00/3.0	TL	695	1750	18500	625
26.5-25	40	22.00/3.0	TL	695	1750	19800	750
	50	22.00/3.0	TL	695	1750	23500	900
29.5-25	36	25.00/3.5	TL	750	1875	21200	550
	40	25.00/3.5	TL	750	1875	22500	625
	50	25.00/3.5	TL	750	1875	26700	775
29.5-29	36	25.00/3.5	TL	750	1975	22000	550
	40	25.00/3.5	TL	750	1975	23600	625
	50	25.00/3.5	TL	750	1975	26800	775
35/65-33	42	28.00/3.5	TL	890	2030	26500	625
35/65-33	48	28.00/3.5	TL	890	2030	29000	725
45/65-45	58	36.00/4.5	TL	1050	2350	50000	675
