5.50F-16 6.00G-16 6.50-16 7.00T-20 7.50V-20 8.00V-20 8.50-20 8.50-24
Features:
Suitable Conditions:

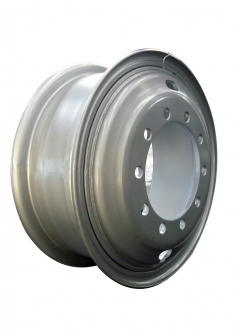

Truck Wheel RimTel: +86-532-85616527
E-mail: David@marristyre.com
Description
Data table
SIZE | BOLT HOLES | P.C.D | CBD OFFSET | DISK THICK | Rec.Type | |||
Number. | Diameter | TYRE | (mm) | mm | mm | mm | ||
5.50F-16: | ||||||||
5.50F-16 | 5 | 32.5 | SR22 | 203.2 | 146 | 108 | 8 | 7.00-16 |
10 | 7.00-16 | |||||||
12 | 7.00-16 | |||||||
5.50F-16 | 5 | 32.5 | SR22 | 203.2 | 146 | 112 | 8 | 7.00-16 |
10 | 7.00-16 | |||||||
12 | 7.00-16 | |||||||
5.50F-16 | 5 | 32.5 | SR22 | 208 | 150 | 115 | 8 | 6.50-16 |
10 | 6.50-16 | |||||||
12 | 6.50-16 | |||||||
5.50F-16 | 6 | 32.5 | SR22 | 222.25 | 164 | 119 | 8 | 7.00-16 |
10 | 7.00-16 | |||||||
12 | 7.00-16 | |||||||
5.50F-16 | 6 | 20.5 | SR22 | 190 | 140 | 115 | 8 | 7.00-16 |
10 | 7.00-16 | |||||||
12 | 7.00-16 | |||||||
6.00G-16: | ||||||||
6.00G-16 | 5 | 32.5 | SR22 | 203.2 | 146 | 127 | 8 | 7.00-16 |
10 | 7.00-16 | |||||||
12 | 7.00-16 | |||||||
6.00G-16 | 5 | 32.5 | SR22 | 203.2 | 146 | 135 | 8 | 7.00-16 |
10 | 7.00-16 | |||||||
12 | 7.00-16 | |||||||
6.00G-16 | 5 | 32.5 | SR22 | 208 | 150 | 127 | 8 | 6.50-16 |
10 | 6.50-16 | |||||||
12 | 6.50-16 | |||||||
6.00G-16 | 6 | 32.5 | SR22 | 222.25 | 164 | 135 | 8 | 7.00-16 |
10 | 7.00-16 | |||||||
12 | 7.00-16 | |||||||
6.00G-16 | 6 | 20.5 | SR22 | 190 | 140 | 135 | 8 | 7.00-16 |
10 | 7.00-16 | |||||||
12 | 7.00-16 | |||||||
6.50-16: | ||||||||
6.50-16: | 6 | 20.5 | SR22 | 190 | 140 | 127 | 10 | 7.50-16 |
12 | 7.50-16 | |||||||
14 | 7.50-16 | |||||||
6.50-16: | 6 | 32.5 | SR22 | 222.25 | 164 | 135 | 10 | 8.25-16 |
12 | 8.25-16 | |||||||
14 | 8.25-16 | |||||||
6.50-20: | ||||||||
6.50-20 | 6 | 20.5 | SR22 | 190 | 140 | 145 | 12 | 8.25-20 |
14 | 8.25-20 | |||||||
6.50-20: | 6 | 32.5 | SR22 | 222.25 | 164 | 145 | 12 | 8.25-20 |
14 | 8.25-20 | |||||||
6.50-20: | 8 | 26.5 | SR18 | 275 | 221 | 145 | 12 | 8.25-20 |
14 | 8.25-20 | |||||||
6.50-20: | 8 | 26.5 | SR22 | 275 | 214 | 145 | 12 | 8.25-20 |
14 | 8.25-20 | |||||||
6.50-20: | 8 | 32.5 | 1×45° | 285 | 221 | 145 | 12 | 8.25-20 |
14 | 8.25-20 | |||||||
7.00T-20: | ||||||||
7.00T-20 | 8 | 32.5 | SR22 | 285 | 221 | 153 | 12 | 9.00-20 |
14 | 9.00-20 | |||||||
7.00T-20 | 8 | 32.5 | SR22 | 275 | 214 | 152 | 12 | 9.00-20 |
14 | 9.00-20 | |||||||
7.00T-20 | 8 | 26.5 | 1x45° | 275 | 220.5 | 152 | 12 | 9.00-20 |
14 | 9.00-20 | |||||||
7.00T-20 | 8 | 26.5 | 1x45° | 275 | 214 | 153 | 12 | 9.00-20 |
14 | 9.00-20 | |||||||
7.00T-20 | 10 | 26.5 | SR22 | 335 | 281 | 152 | 12 | 9.00-20 |
14 | 9.00-20 | |||||||
7.00T-20 | 10 | 32.5 | SR22 | 285.75 | 222 | 152 | 12 | 9.00-20 |
14 | 9.00-20 | |||||||
7.00T-20 | 10 | 26.5 | 1×45° | 285.75 | 220 | 152 | 12 | 9.00-20 |
14 | 9.00-20 | |||||||
7.50V-20: | ||||||||
7.50V-20 | 8 | 32.5 | SR22 | 285 | 221 | 165 | 12 | 10.00-20 |
14 | 10.00-20 | |||||||
16 | 10.00-20 | |||||||
7.50V-20 | 8 | 32.5 | SR22 | 275 | 214 | 165 | 12 | 10.00-20 |
14 | 10.00-20 | |||||||
16 | 10.00-20 | |||||||
7.50V-20 | 8 | 26.5 | 1x45° | 275 | 214 | 165 | 12 | 10.00-20 |
14 | 10.00-20 | |||||||
16 | 10.00-20 | |||||||
7.50V-20 | 8 | 26.5 | 1X45° | 275 | 220 | 165 | 12 | 10.00-20 |
14 | 10.00-20 | |||||||
16 | 10.00-20 | |||||||
7.50V-20 | 10 | 32.5 | SR22 | 285.75 | 222 | 165 | 12 | 10.00-20 |
14 | 10.00-20 | |||||||
16 | 10.00-20 | |||||||
7.50V-20 | 10 | 26.5 | 1x45° | 285.75 | 220.5 | 165 | 12 | 10.00-20 |
14 | 10.00-20 | |||||||
16 | 10.00-20 | |||||||
7.50V-20 | 10 | 26.5 | 1x45° | 335 | 281 | 165 | 12 | 10.00-20 |
14 | 10.00-20 | |||||||
16 | 10.00-20 | |||||||
8.00V-20: | ||||||||
8.00V-20 | 10 | 26 | 1×45° | 335 | 281 | 170 | 14 | 11.00-20 |
16 | 11.00-20 | |||||||
8.00V-20 | 10 | 27 | 1×45° | 335 | 281 | 170 | 14 | 11.00-20 |
16 | 11.00-20 | |||||||
8.00V-20 | 10 | 32.5 | SR22 | 285.75 | 222 | 170 | 14 | 11.00-20 |
16 | 11.00-20 | |||||||
8.00V-20 | 10 | 26.5 | SR18 | 335 | 281 | 170 | 14 | 11.00-20 |
16 | 11.00-20 | |||||||
8.00V-20 | 10 | 26.5 | 1×45° | 285.75 | 220.5 | 170 | 14 | 11.00-20 |
16 | 11.00-20 | |||||||
8.50-20: | ||||||||
8.50-20: | 10 | 26 | 1×45° | 335 | 281 | 175 | 14 | 12.00-20 |
16 | 12.00-20 | |||||||
8.50-20: | 10 | 27 | 1×45° | 335 | 281 | 175 | 14 | 12.00-20 |
16 | 12.00-20 | |||||||
8.50-20: | 10 | 32.5 | SR22 | 285.75 | 222 | 175 | 14 | 12.00-20 |
16 | 12.00-20 | |||||||
8.50-20: | 10 | 26.5 | SR18 | 335 | 281 | 175 | 14 | 12.00-20 |
16 | 12.00-20 | |||||||
8.50-20: | 10 | 26.5 | 1×45° | 285.75 | 220.5 | 175 | 14 | 12.00-20 |
16 | 12.00-20 | |||||||
8.50-24 | ||||||||
8.50-24 | 10 | 27 | SR18 | 335 | 281 | 180 | 14 | 12.00-24 |
16 | 12.00-24 | |||||||
8.50-24 | 10 | 26 | 1×45° | 335 | 281 | 180 | 14 | 12.00-24 |
16 | 12.00-24 |
