Features:
Suitable Conditions:

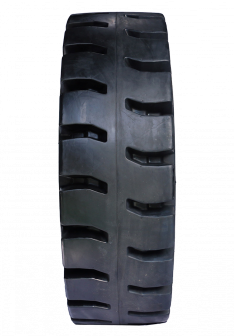

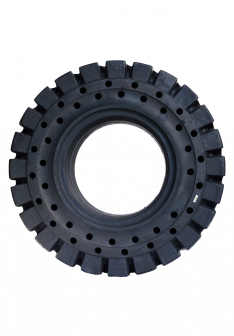

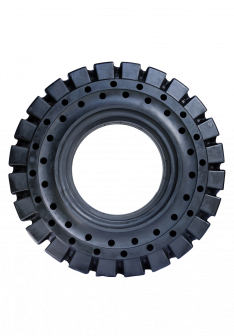

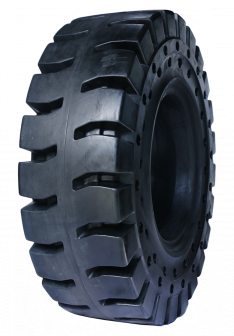

Description
High loading, low rolling resistance, lower energy consumption,
higher wear and antipuncture resistance, no exploding, lower cost of maintenance,
such kind of tire is widely used on the special vehicle of port, mine metallurgical industry.
Data table
| Size | Rim | O.D (mm) | S.W(mm) | Max.Load (Kg) | ||||||
| Balanced forklift | Other Industrial | |||||||||
| 10km/h | 16km/h | 25km/h | ||||||||
| ±5mm | ±5mm | Drive | Steer | Drive | Steer | Drive | Steer | 25km/h | ||
| 8.25-20 | 6.50T/7.00 | 976 | 216.64 | 5335 | 4445 | 4870 | 4060 | 4525 | 3770 | 3770 |
| 9.00-16 | 6.00/6.50/7.00 | 880 | 211.73 | 5290 | 4070 | 4830 | 3715 | 4485 | 3450 | 3450 |
| 9.00-20 | 7.00/7.50 | 1005 | 236 | 6365 | 5305 | 5815 | 4845 | 5400 | 4500 | 4500 |
| 10.00-20 | 7.00/7.50 | 1041 | 248 | 7075 | 5895 | 6460 | 5385 | 6000 | 5000 | 5000 |
| 10.00-20 SM | 7.5 | 1041 | 248 | 7075 | 5895 | 6460 | 5385 | 6000 | 5000 | 5000 |
| 11.00-20 | 7.70/8.00 | 1057.9 | 270 | 7715 | 6430 | 7045 | 5870 | 6540 | 5450 | 5450 |
| 12.00-20 | 8.00/8.50 | 1112 | 285 | 8920 | 7435 | 8140 | 6785 | 7560 | 6300 | 6300 |
| 12.00-24 | 8.5 | 1218 | 300 | 9125 | 7605 | 8335 | 6945 | 7740 | 6450 | 6450 |
| 14.00-20 ST | 10 | 1250 | 316 | 10800 | 8640 | 10430 | 7840 | 9730 | 7315 | 7450 |
| 14.00-24 | 10 | 1340 | 328 | 12165 | 10135 | 11105 | 9255 | 10315 | 8595 | 8595 |
| 16.00-25 | 11.25 | 1446 | 390 | 16860 | 13490 | 15170 | 11400 | 13480 | 10130 | 12130 |
| 17.5-25 | 14 | 1368 | 458 | 17720 | 14180 | 16880 | 12690 | 15960 | 12000 | 12220 |
| 23.5-25 | 19.5 | 1620 | 580 | 30830 | 24660 | 29790 | 22400 | 27770 | 20880 | 21260 |
| 26.5-25 | 22 | 1736 | 650 | 39300 | 31400 | 37400 | 28100 | 35400 | 26600 | 27100 |
