13.00-25 14.00-20 14.00-24 14.00-25
Features:
Suitable Conditions:

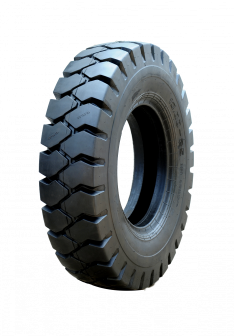

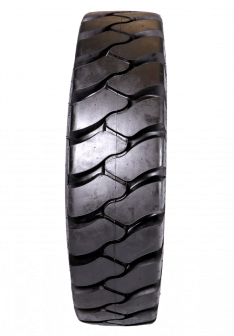

The mining tyre is specially designed for off-highway tippers.
Description
The mining tyre is specially designed for off-highway tippers.
The tyre body is firm, the explosion resistance and the puncture resistance are good, and the load resistance is extremely high;
Due to the special tread wear resistance formula and low heat generation formula design, it has quite excellent cut resistance and wear resistance;
Due to the unique deep pattern design and the wide running area design, it will not slip while climbing a slope, and the passing performance is excellent.
Data table
| SIZE | PR | TYPE | T.D(mm) | Std. Rim | Max Load | Inflation Pressure | S.W.(mm) | O.D.(mm) | ||
| (kg) | (lbs) | (kPa) | (psi) | |||||||
| S/D | S/D | S/D | S/D | |||||||
| 14.00-25 | 40 | TT | 33 | 10.00/2.0 | 11500 | 25350 | 1200 | 174 | 375 | 1370 |
| 36 | TT | 30.5 | 10.00/2.0 | 11500 | 25350 | 1200 | 174 | 375 | 1370 | |
| 28 | TT | 30.5 | 10.00/2.0 | 10000 | 22045 | 925 | 134 | 375 | 1370 | |
| 14.00-24 | 28 | TT | 28 | 10 | 10000 | 22045 | 925 | 134 | 375 | 1370 |
| 24 | TT | 28 | 10 | 9500 | 20940 | 850 | 123 | 375 | 1370 | |
| 14.00-20 | 24 | TT | 28 | 10 | 5600/4905 | 12345/10810 | 890/820 | 129/119 | 375 | 1265 |
| 13.00-25 | 28 | TT | 30 | 8.5 | 5570 | 12280 | 740 | 107 | 350 | 1300 |
