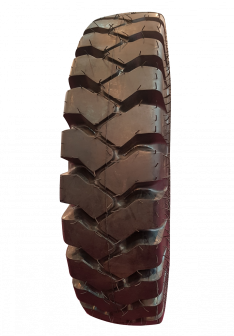

Mining Tyre 12.00-24,12.00-20

12.00-24 12.00-20

    Features:

  • Deeper Tread
  • Special rubber compound
  • Stronger carcass
  • Reinforced structure

Suitable Conditions:

For dump trucks on forestry logging service.

Description

The mining tyre is specially designed for off-highway tippers.

The tyre body is firm, the explosion resistance and the puncture resistance are good, the load resistance is extremely high;

Due to the special tread wear resistance formula and low heat generation formula design, it has quite excellent cut resistance and wear resistance;

Due to the unique deep pattern design and the wide running area design, it will not slip while climbing a slope, and the passing performance is excellent.

Deeper tread pattern for powerful traction and longer lifespan..

For dump trucks on forestry logging service.

Data table



SIZEPRTYPET.D(mm)Std.RimMax LoadInflation PressureS.W.(mm)O.D.(mm)
(kg)(lbs)(kPa)(psi)
S/DS/DS/DS/D
12.00-2424TT218.54790/425010560/93701000/930145/1353151247
12.00-2418TT218.54200/37509259/8267810/740117/1073151247
12.00-2020TT218.54000/34508818/7605880/810128/1173151145
12.00-2018TT218.53750/33508267/7385810/740117/1073151145
