11.00-20 12.00-20 14.00-20 13.00-25 14.00-25 16.00-25
Features:
Suitable Conditions:

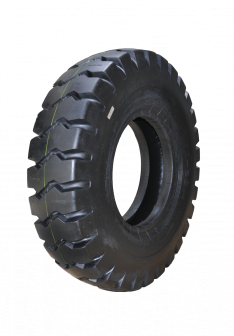

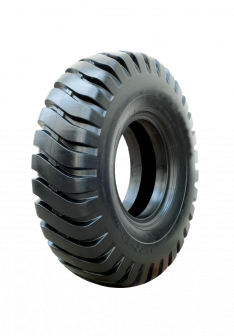

The mining tyre is specially designed for off-highway tippersDescription
The mining tyre is specially designed for off-highway tippers.
The tyre body is firm, the explosion resistance and the puncture resistance are good, and the load resistance is extremely high;
Due to the special tread wear resistance formula and low heat generation formula design, it has quite excellent cut resistance and wear resistance;
Due to the unique deep pattern design and the wide running area design, it will not slip while climbing a slope, and the passing performance is excellent.
Data table
| SIZE | PR | TYPE | T.D.(mm) | Std. Rim | Max Load | Inflation Pressure | S.W.(mm) | O.D.(mm) | ||
| (kg) | (lbs) | (kPa) | (psi) | |||||||
| S/D | S/D | S/D | S/D | |||||||
| 12.00-20 | 18 | TT | 28 | 8.5 | 3750/3350 | 8267/7385 | 810/740 | 117/107 | 315 | 1145 |
| 14.00-20 | 20 | TT | 29 | 10 | 5000/4375 | 11020/9645 | 770/700 | 112/102 | 375 | 1245 |
| 14.00-20 | 24 | TT | 29 | 10 | 5600/4905 | 12345/10810 | 890/820 | 129/119 | 375 | 1245 |
| 13.00-25 | 28 | TT | 30 | 8.5 | 5570 | 12280 | 740 | 107 | 350 | 1300 |
| 16.00-25 | 36 | TT/TL | 36 | 11.25/2.0 | 13600 | 29980 | 975 | 141 | 430 | 1495 |
