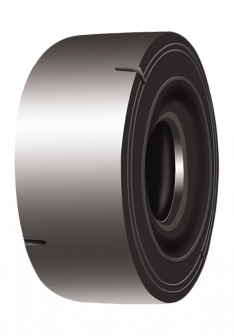

17.5R25 20.5R25 23.5R25 26.5R25 29.5R25 29.5R29 18.00R25 35/65R33
Features:
Suitable Conditions:
Suitable for stone pit,industry zone and underground mine.
Description
Spmooth tread pattern;Special cut resistance and loading capabilities;Reliable in the most extreme harsh conditions;Suitable for stone pit,industry zone and underground mine.
Data table
| 轮胎规格 Tire Size | 星级强度 Star Rating | 符合指数 Load Index | 花纹代码 Tra Code | 花纹深度 Tread Depth(mm) | 有无内胎 Type | 标准轮辋 Standard Rim (Width&Flange) | 新胎充气外缘尺寸(mm) | 最大负荷 Max.Load(kg) | 标准气压 Standard Pressure(bar) | 最高速度 Max.Speed (km/h) | |
| 外直径 Diameter | 断面宽 Section Width | ||||||||||
| 17.5R25 | ☆☆ | 182 | L-5S | 65 | TT/TL | 14.00/1.5 | 1399 | 445 | 8500 | 6.5 | 10 |
| 20.5R25 | ☆☆ | 193 | L-5S | 72 | TL | 17.00/2.0 | 1548 | 521 | 11500 | 6.5 | 10 |
| 23.5R25 | ☆☆ | 201 | L-5S | 83 | TL | 19.50/2.5 | 1673 | 597 | 14500 | 6.5 | 10 |
| 26.5R25 | ☆☆ | 209 | L-5S | 90 | TL | 22.00/3.0 | 1798 | 673 | 18500 | 6.5 | 10 |
| 29.5R25 | ☆☆ | 216 | L-5S | 100 | TL | 25.00/3.5 | 1921 | 750 | 22400 | 6.5 | 10 |
| 29.5R29 | ☆☆ | 218 | L-5S | 100 | TL | 25.00/3.5 | 2023 | 750 | 23600 | 6.5 | 10 |
| 18.00R25 | ☆☆ | 204 | L-5S | 80 | TL | 13.00/2.5 | 1655 | 515 | 16000 | 8.25 | 10 |
| 35/65R33 | ☆☆ | 224 | L-5S | 97 | TL | 28.00/3.5 | 2050 | 895 | 28000 | 6.5 | 10 |
