17.5R25 20.5R25 23.5R25 26.5R25 29.5R25 29.5R29 35/65R33
Features:

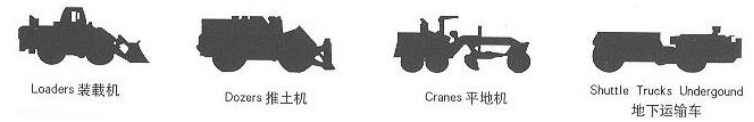

Suitable Conditions:
Description
Good traction and protection;Stable, comfortable ride;Special abrasion resistance with long-lasting tread life; Suitable for amny conditions such as stone pitindustry zone and underground mine.
Data table
| 轮胎规格 Tire Size | 星级强度 Star Rating | 符合指数 Load Index | 花纹代码 Tra Code | 花纹深度 Tread Depth(mm) | 有无内胎 Type | 标准轮辋 Standard Rim (Width&Flange) | 新胎充气外缘尺寸(mm) | 最大负荷 Max.Load(kg) | 标准气压 Standard Pressure(bar) | 最高速度 Max.Speed (km/h) | |
| 外直径 Diameter | 断面宽 Section Width | ||||||||||
| 26.5R25 | ☆☆ | 209/193 | L-4 /E-4 | 57 | TL | 22.00/3.0 | 1798 | 673 | 18500/11500 | 6.5/5.25 | 10/50 |
| 29.5R29 | ☆☆ | 218/202 | L-4 /E-4 | 60 | TL | 25.00/3.5 | 2023 | 750 | 23600/15000 | 6.5/5.25 | 10/50 |
| 35/65R33 | ☆☆ | 224/207 | L-4 /E-4 | 62.5 | TL | 28.00/3.5 | 2075 | 880 | 28000/17500 | 6.5/5.25 | 10/50 |
| 20.5R25 | ☆☆ | 193 | L-5 | 72 | TL | 17.00/2.0 | 1548 | 521 | 11500 | 6.5 | 10 |
| 23.5R25 | ☆☆ | 201 | L-5 | 78 | TL | 19.50/2.5 | 1673 | 597 | 14500 | 6.5 | 10 |
| 26.5R25 | ☆☆ | 209 | L-5 | 87 | TL | 22.00/3.0 | 1798 | 673 | 18500 | 6.5 | 10 |
| 29.5R25 | ☆☆ | 216 | L-5 | 95 | TL | 25.00/3.5 | 1921 | 750 | 22400 | 6.5 | 10 |
| 29.5R29 | ☆☆ | 218 | L-5 | 95 | TL | 25.00/3.5 | 2023 | 750 | 23600 | 6.5 | 10 |
| 35/65R33 | ☆☆ | 224 | L-5 | 97 | TL | 28.00/3.5 | 2075 | 880 | 28000 | 6.5 | 10 |
