13.00-24 14.00-24 16.00-24 15.5-25 17.5-25 20.5-25 23.5-25
Features:
Suitable Conditions:
Tel: +86-532-85616527
E-mail: David@marristyre.com
Description

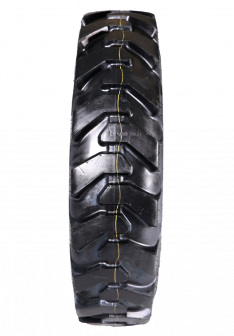

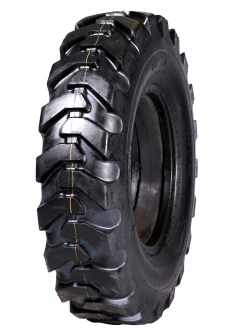

Outstanding bias tire used on scrapers and motor grader in city and country maintenance work,construction and mine applications.
The strong,larger and durable casing designed to extend life service.
Open shoulder grooves are self-cleaning for excellent traction and less slipping.
Special cut-and chip-resistant compound.
Tough,durable casing makes it the most widely re-treaded tire in the industry.
Data table
Size | Ply-rating | Rim | Tube Type | S.W.(mm) | O.D.(mm) | Max.Load(kg) 10km/h*40km/h | Inflation Pressure(kpa) 10km/h*40km/h |
13.00-24 | 12 | 8 | TT/TL | 335 | 1275 | 5600*2725 | 450*300 |
16 | 8 | TT/TL | 335 | 1275 | 6500*3275 | 600*425 | |
14.00-24 | 12 | 8 | TT/TL | 360 | 1345 | 6300*3075 | 425*275 |
16 | 8 | TT/TL | 360 | 1345 | 7300*3650 | 550*375 | |
16.00-24 | 16 | 10.00VA | TT/TL | 425 | 1460 | 8250*4500 | 425*325 |
15.5-25 | 12 | 12.00/1.3 | TT/TL | 395 | 1275 | 2650 | 225 |
16 | 12.00/1.3 | TT/TL | 395 | 1275 | 3200 | 325 | |
17.5-25 | 12 | 14.00/1.5 | TT/TL | 445 | 1350 | 2900 | 200 |
16 | 14.00/1.5 | TT/TL | 445 | 1350 | 3350 | 275 | |
20 | 14.00/1.5 | TT/TL | 445 | 1350 | 3650 | 325 | |
20.5-25 | 12 | 17.00/2.0 | TT/TL | 520 | 1490 | 3500 | 175 |
16 | 17.00/2.0 | TT/TL | 520 | 1490 | 4000 | 225 | |
20 | 17.00/2.0 | TT/TL | 520 | 1490 | 4500 | 275 | |
23.5-25 | 12 | 19.00/2.5 | TT/TL | 595 | 1615 | 4000 | 150 |
16 | 19.00/2.5 | TT/TL | 595 | 1615 | 4750 | 200 | |
20 | 19.00/2.5 | TT/TL | 595 | 1615 | 5450 | 250 |
