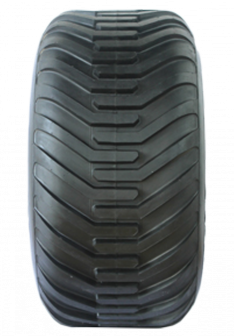

Flotation Tyre

360/60-22.5 400/55-22.5 400/60-22.5 500/45-22.5 500/60-22.5 550/45-22.5 600/50-22.5 550/60-22.5 600/50-22.5 600/55-22.5 650/50-22.5 700/40-22.5 700/50-22.5 710/40-22.5 600/55-26.5 700/50-26.5 800/45-26.5

Features:

Less damage to soil
Slide-slippage proof
Resistance to punctures
Low profile

Suitable Conditions:

Marris Flotation Tire suitable for Implement Trailer,Sugar Cane Harvester, Spreader

Tel: +86-532-85616527

E-mail: David@marristyre.com

Description

Agricultural Implement & Trailer,Sugar Cane harvester,Spreader, both on and off road

Flotation Implement design for high load capacity at low inflation pressures.

Data table

Size	PR	Tread Pattern	Tube Type	Rim Size	Inflated Dimensions(mm)		Max Load(kg)	Inflation Pressure(kpa)
Size	PR	Tread Pattern	Tube Type	Rim Size	Section Width	Overall Diameter	40km/h	Inflation Pressure(kpa)
600/50-22.5	16	TRC03	TL	20.0*22.5	615	1135	3250	320
650/50-22.5	16	TRC03	TL	20.0*22.5	655	1195	3750	320
600/55-22.5	16	TRC03	TL	20.0*22.5	615	1140	3250	320
700/40-22.5	16	TRC03	TL	24.0*22.5	715	1140	3450	320
700/50-22.5	16	TRC03	TL	24.0*22.5	705	1200	4000	320
710/40-22.5	16	TRC03	TL	24.0*22.5	720	1143	3450	320
600/55-26.5	16	TRC03	TL	20.0*26.5	610	1305	3750	320
650/55-26.5	16	TRC03	TL	22.0*26.6	660	1305	4215	320
700/50-26.5	16	TRC03	TL	24.0*26.5	713	1308	4500	320
710/45-26.5	16	TRC03	TL	24.0*26.5	717	1305	4500	320
750/50-26.5	16	TRC03	TL	26.0*26.5	765	1308	4875	320
800/45-26.5	16	TRC03	TL	28.0*26.5	815	1310	5300	320
850/45-26.5	16	TRC03	TL	30.0*26.5	865	1312	5800	320
