E-2 Mobile Crane Tyre

14.00R24 (385/95R24) 14.00R25 (385/95R25) 16.00R25 (445/95R25) 17.5R25 (445/80R25) 20.5R25 (525/80R25) 18.00R25 (505/95R25)

Features:

Suitable Conditions:

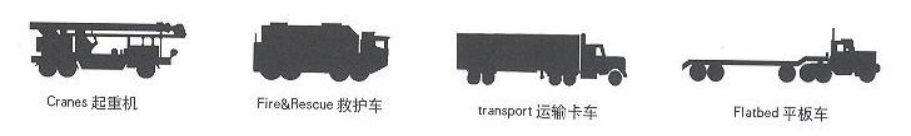

E2 tyres for crane,fire and resure ,flatbeds machines

Description

High-speed capability;Exceptional operate comfort;Intermediate transverse block pan;Long tyre life;Good traction;Suitable for cranes.

Data table

轮胎规格 Tire Size	星级强度 Star Rating	符合指数 Load Index	花纹代码 Tra Code	花纹深度 Tread Depth(mm)	有无内胎 Type	标准轮辋 Standard Rim (Width&Flange)	新胎充气外缘尺寸(mm)		最大负荷 Max.Load(kg)	标准气压 Standard Pressure(bar)	最高速度 Max.Speed (km/h)
轮胎规格 Tire Size	星级强度 Star Rating	符合指数 Load Index	花纹代码 Tra Code	花纹深度 Tread Depth(mm)	有无内胎 Type	标准轮辋 Standard Rim (Width&Flange)	外直径 Diameter	断面宽 Section Width	最大负荷 Max.Load(kg)	标准气压 Standard Pressure(bar)	最高速度 Max.Speed (km/h)
14.00R24 (385/95R24)	☆☆☆	170	E-2	23	TL	10.00W	1356	382	6000	10	70
14.00R25 (385/95R25)	☆☆☆	170	E-2	23	TL	10.00/1.5	1356	382	6000	10	70
16.00R25 (445/95R25)	☆☆☆	174	E-2	28	TL	11.25/2.0	1493	432	6700	10	80
17.5R25 (445/80R25)	☆☆☆	170	E-2	28	TL	14.00/1.5	1348	445	6000	10	70
20.5R25 (525/80R25)	☆☆☆	179	E-2	31	TL	17.00/2.0	1490	521	7750	10	70
18.00R25 (505/95R25)	☆☆☆	186	E-2	28	TL	13.00/2.5	1615	498	9500	10	70
